What is 3d Laser Scanning ?

What is 3D Laser Scanning?

3d laser scanning is method of capturing spatial data and developing the data into highly detailed and dimensionally accurate as-built 2d plans, topography, 3d models, and scan to BIM models. Laser Scanning can also be referred to as Terrestrial LIDAR.  LIDAR is an acronym - Light Detection And Ranging.

How Laser Scanning Works

What is a Laser Scanner?

A 3d Laser Scanner is a reality capture instrument that collects spatial information for a specific environment. Similar to a traditional Surveying Instrument (Electronic Total Station) it captures XYZ point information combined with reflective surface light intensity to create a 3D dimensionally accurate image. You can think of a Laser Scanner as an Electronic Total Station on steroids.  A Laser Scanner collects a large amount of data very quickly. Scanners collect thousands of XYZ points per second where a Surveying Instrument collects single point XYZ data. The 3d scanner can operate in a variety of conditions including complete darkness, highly illuminated areas, active environments such as roadways and railways; congested and/or dangerous working conditions are typical examples.

The Laser Scanner works by emitting a Laser signal then computing either the time of flight or phase shift between the scanner and the object that is targeted to determine its relative position and surface light intensity. There are many types of Laser Scanners.  In our work the two primary laser scanning technologies to capture point data are Phase Shift and Pulsed based.

Phase Shift - The distance to a particular object is calculated from the phase difference of a modulated laser signal. The received laser signal is compared to transmitted signal to determine the "shift" which can be used to calculate distance. Phase shift technology has range (60-90M) capability and data acquisition rates (500,000 + pts/sec.).

Pulsed Based - This is Time of Flight laser measurement. The transmitted laser signal is timed (based on the speed of light) after leaving the scanner hitting the object and then returned to the scanner. The time difference is used for distance calculation. Pulse Based technology has range capabilities (100-500 m) and data acquisition rates (500,000 to 1,000,000 pts/sec.).

The Laser Scanning Process.

The 3d Laser Scanner collects a single scan of a pre-defined area with a certain level of detail appropriate for the particular project. The scan is typically referred to as a Point Cloud. The Point Cloud is essentially a highly detailed 3D picture that is measurable. Usually multiple scans are needed to create an overall image of the specific area.  The multiple scans are then registered (combined) together with common points or targets within the individual scans creating a single 3D environment representing the entire project area. The project area can then be coordinated with a local or global coordinate system resulting in a highly detailed, accurate map.

Call Today: 607-327-1106

Email: cgibbons@gpassociates.org

Contact Us






Point Clouds Explained: 3 Key Things You Should Know

Point Clouds Explained: 3 Key Things You Should Know

In recent years, point clouds have stood at the forefront of architectural and engineering innovation, offering an unparalleled medium for capturing and modeling the physical world with high precision. That means if you’ve fallen behind the times a ...
...Continue Reading
Debunking 5 Misconceptions About 3D Laser Scanning

Debunking 5 Misconceptions About 3D Laser Scanning

In the highly technical fields of architecture and engineering, 3D laser scanning is not just a buzzword; it’s a groundbreaking tool transforming how professionals conceptualize, plan, and execute their work. Despite its proven track record, misconceptions surrounding this ...
...Continue Reading
The 3D Laser Scanning Process: What Does It Look Like?

The 3D Laser Scanning Process: What Does It Look Like?

Precision is paramount in the world of architecture. It’s the driving force behind the skyscrapers that pierce our skylines and the bridges that connect lands. Enter 3D laser scanning—a technology that is redefining precision, accuracy, and ...
...Continue Reading
What You Should Know About Scan to BIM Services

What You Should Know About Scan to BIM Services

When it comes to modern architectural and engineering practices, the precision of data collection and the efficiency of project management can make all the difference. This is where Scan to BIM (building information modeling) services come into play, revolutionizing the ...
...Continue Reading
The Future of 3D Laser Scanning in Construction

The Future of 3D Laser Scanning in Construction

Precision and foresight are everything in construction. Currently revolutionizing this aspect of the industry, 3D laser scanning is shifting how we approach construction projects, from the drafting table to project completion. Let’s see how the future of 3D ...
...Continue Reading
What Are As-Built Drawings? What You Should Know

What Are As-Built Drawings? What You Should Know

As-built drawings serve as the foundational records that document the precise state of a completed project. These documents epitomize the culmination of theoretical designs and practical construction work, incorporating every alteration during the construction process. We cannot overstate their significance, ...
...Continue Reading
A Quick Guide To Understanding the Costs of 3D Laser Scanning

A Quick Guide To Understanding the Costs of 3D Laser Scanning

3D laser scanning has become an indispensable tool in various industries, from construction and engineering to historical preservation. Understanding the factors that affect the price of 3D laser scanning services involves considering the details and scope of the specific project. ...
...Continue Reading
Benefits of Revit Modeling for Architectural Design

Benefits of Revit Modeling for Architectural Design

Building Information Modeling (BIM) often takes the form of the program known as Autodesk Revit. This software suite is a digital Swiss Army knife for architectural designers, as it features a plethora of tools that improve efficiency, precision, and communication. ...
...Continue Reading
Why You Should Use 3D Laser Scanning for Your Project

Why You Should Use 3D Laser Scanning for Your Project

In a rapidly evolving design landscape, professionals who are consistently seeking ways to innovate and streamline their projects find the adoption of advanced technologies to be crucial. One such technology, which has proven to be a game-changer, is 3D laser ...
...Continue Reading
Tips for Choosing the Right 3D Laser Scanning Company

Tips for Choosing the Right 3D Laser Scanning Company

3D laser scanning is a powerful technology that captures detailed, high-resolution data to create accurate digital representations of objects and environments. This technique holds significant value for designing, analyzing, and preserving structures. As the demand for 3D laser scanning services ...
...Continue Reading

Norfolk Street, Manhattan, NY

Type: Residential As-Built Projects
As-Built AutoDesk Revit model of an apartment utilizing laser scan data. The owner was working in conjuction with an architect to renovate the space.  The existing conditions Revit model allows the owner and architect to colloborate on the proposed renovations of the space.  The collection of the laser scan data took 1 hour to complete thus minimizing the impacts on the owners busy schedule.

View More Images


East 49th Street

Type: Residential As-Built Projects

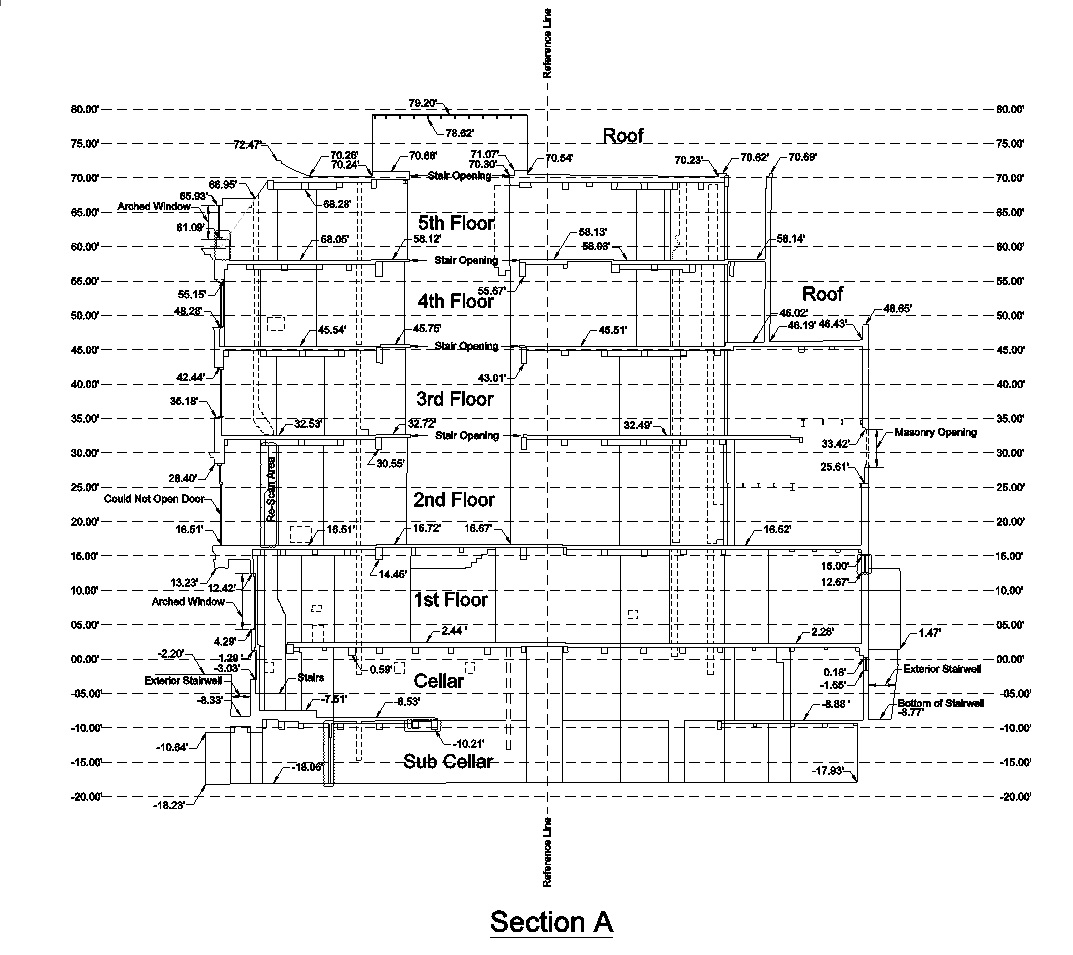

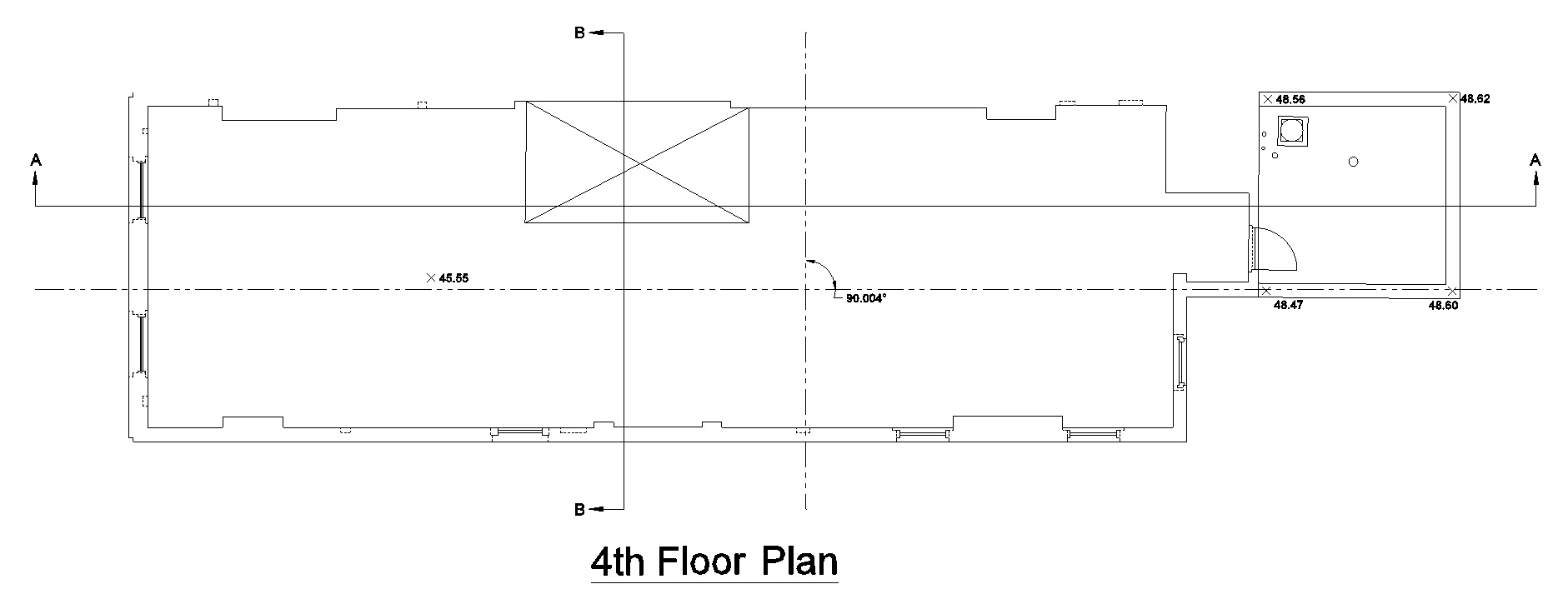

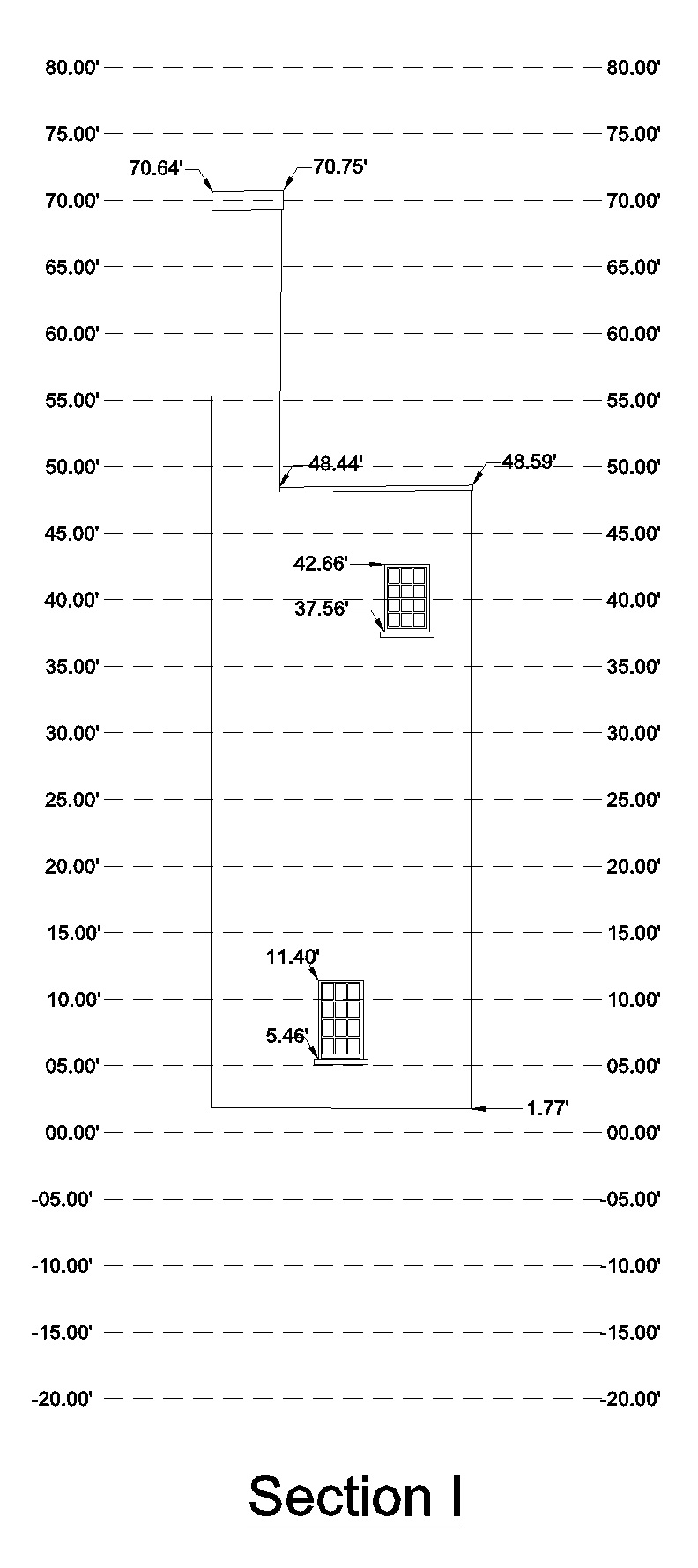

Laser scanning of demolitioned building of exterior and interior for As-Built sections and floor plans.
